What Are Limb Risers? A Simple Upgrade for Protecting Your 4x4 on the Trail

If you spend enough time driving wooded trails, especially out here on the East coast, you quickly learn that branches have a habit of finding the most expensive parts of your vehicle. Windshields, A-pillars, roof racks, lights, and antennas are all easy targets when the trail gets tight.

Limb risers are tensioned cables that typically run from the front of a vehicle up to a roof rack. They're usually mounted to the the bumper, hood area, or fenders at the bottom and the roof rack at the top. Their job is simple: catch low-hanging branches before they reach the windshield and guide them up and over the vehicle.

They’re a relatively simple piece of equipment, but for vehicles that regularly travel narrow, wooded trails, they can be surprisingly useful.

How Do Limb Risers Work?

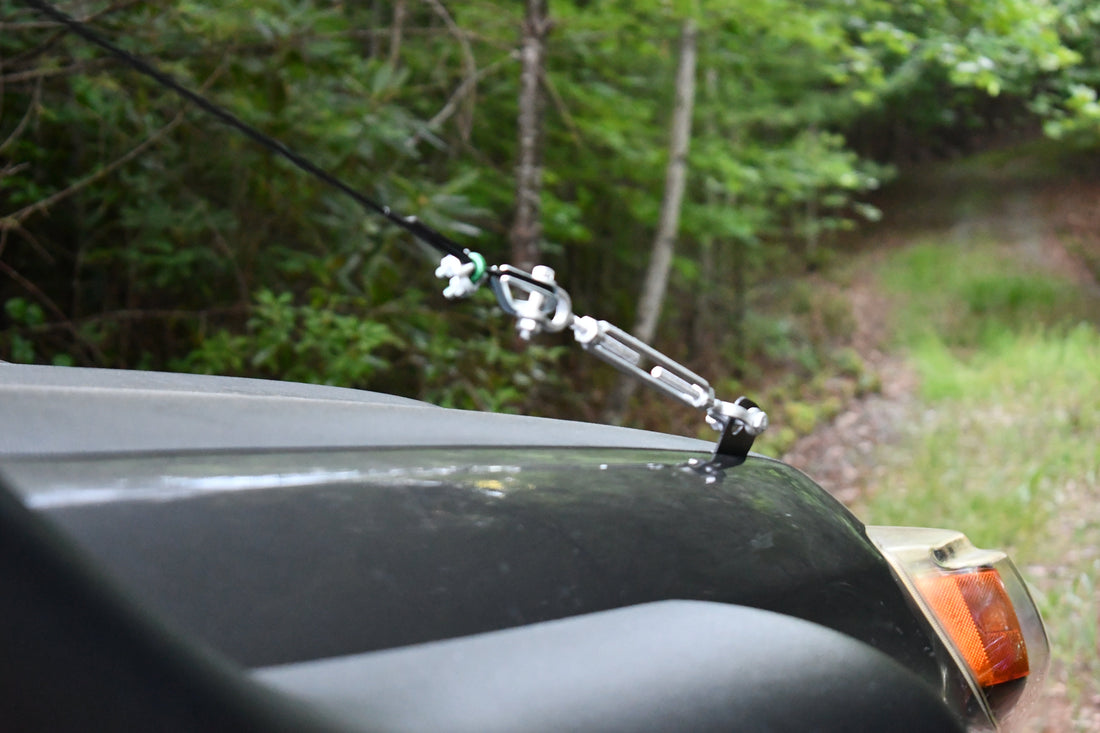

A limb riser consists of a cable or line stretched diagonally from a low mounting point at the front of the vehicle to a higher mounting point on the roof rack.

As the vehicle moves forward, a branch that would normally contact the windshield or A-pillar hits the limb riser first. The angled cable encourages the branch to slide upward and over the roof rather than dragging across the windshield.

Limb risers aren't intended to push large limbs out of the way. If a branch is large enough that you wouldn't want to hit it with your windshield, you shouldn't expect a small cable to safely move it either. Their real advantage is dealing with flexible branches and brush that constantly reach into tight trails, however they can help with an unexpected large branch.

Where Did Limb Risers Come From?

Limb risers aren't a new overlanding invention.

Similar systems have been used for decades on military vehicles, expedition vehicles, forestry equipment, and other vehicles operating in heavily wooded environments. They are sometimes called brush wires, branch deflectors, limb wires, or limb risers.

The basic concept hasn't changed much: place a tensioned wire ahead of vulnerable equipment and use the vehicle's forward movement to guide vegetation upward and away.

Modern 4x4 and overland versions simply adapt that idea to roof racks and bumpers found on today's trucks and SUVs.

What Do Limb Risers Protect?

Limb risers main job is lifting the branches before they hit the glass. This helps protect your A pillar, keeps pressure off the windshield (it doesn't take a huge branch to break glass) and deflects those branches up to the rack.

Do You Need Limb Risers?

For most daily-driven 4x4s, probably not.

If most of your off-road driving consists of open desert, maintained forest roads, gravel roads, or wide trails, limb risers aren't going to provide much benefit.

If you regularly drive tight wooded trails, however, they're much more useful.

Anyone who has driven narrow trails in the eastern United States knows how quickly vegetation can close in. Trails that were clear a few months earlier can become overgrown with saplings and low branches, particularly during spring and summer.

In those conditions, limb risers can provide an extra layer of protection without adding much weight or complexity to the vehicle.

What Makes a Good Limb Riser?

A good limb riser system needs to be strong enough to redirect brush while still being practical to install and remove.

Stainless steel coated cable is a good choice because it's strong, compact, and resistant to corrosion. The hardware should also be corrosion resistant since the system will constantly be exposed to rain, mud, and road grime.

Proper tension is important as well. The cable needs enough tension that it doesn't simply move out of the way when contacted by a branch, but it doesn't need to be excessively tight. Over-tensioning the system only puts unnecessary load on the mounting points.

The mounting points themselves matter just as much as the cable. Limb risers should attach to sturdy locations capable of handling the load created when the cable encounters a branch.

Limb Risers Aren't a Substitute for Trail Awareness

They aren't designed to move heavy branches, protect against falling limbs, or allow you to simply drive through anything hanging over the trail.

Large branches can place significant loads on the cables, roof rack, and mounting points. When in doubt, stopping and moving or trimming an obstruction is still the better option.

Limb risers are best viewed as protection against the smaller branches and brush that are difficult or impossible to avoid on tight trails.

Should I add them to my vehicle?

Limb Risers and kits are not an extremely expensive modification in the grand scheme of modifying a 4x4. The biggest draw back to Limb Risers is they typically restrict opening your hood when tight, and require loosening to open your hood. Otherwise there is not much downside - proper kits have very little to no added wind noise, they don't affect fuel efficiency, and definitely help on overgrown trails. If you like the way they look, and ever venture into thicker brush trails, then go for it!

If you've been thinking of adding them to your vehicle, check out our Limb Riser brackets and kit offerings for many Toyota 4x4s
